Self-Cleaning Drawer Magnetic Separator
Self-Cleaning Drawer Magnetic Separator Self-Cleaning Drawer Magnetic Separator


Short Description

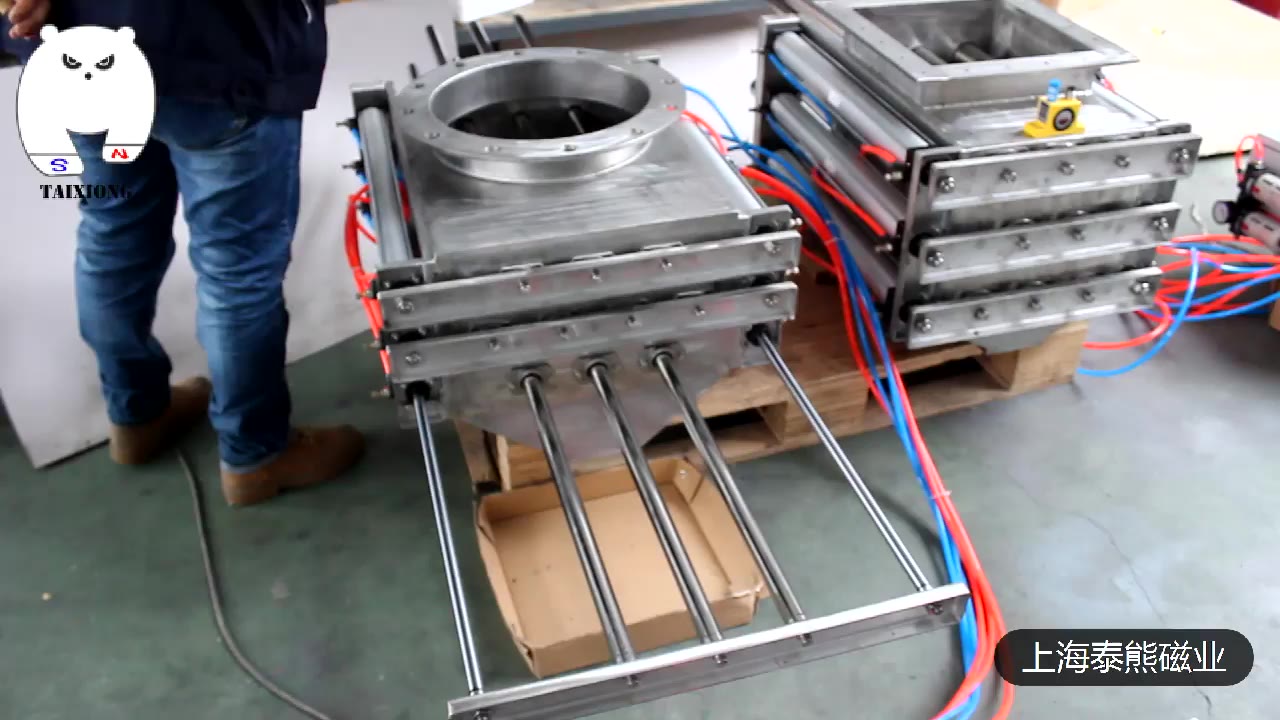

Self-Cleaning Drawer Magnetic Separator will absorb and clean iron automatically, which is major for the material with much iron, clean the iron is convenient and quickly, the air cylinder pulls the magnetic rod layer by layer, the iron adsorbed on the magnetic rod automatically falls off, and the work is continuously, and the raw materials can continue to work when the iron is extracted one by one without stopping the feeding.

The material is fed from the feed port of the magnetic separator and passes through the permanent magnet bar in the magnetic separator. The iron of the material is adsorbed on the magnetic bar by magnetic force, and the non-magnetic mineral particles pass through the magnetic bar and are discharged from the discharge port; At the same time, the permanent magnet bar is pulled layer by layer through the cylinder device, so that the ferromagnetic substance adsorbed on the permanent magnet bar is automatically separated and discharged from the iron removal port


Specifications

Model
nput/Output Shape
Input / Output Size
Max Capacity
Magnetic Grids Position
Bars Q’ty
Magnetic Force
XPGR1-100
Round/Square
100MM
15 CBM/H
1 in Center

5

2000-12000 Gs
XPGR1-150
Round/Square

150MM

22 CBM/H
1 in Center
7 2000-12000 Gs
XPGR1-200
Round/Square
200MM 30 CBM/H
1 in Center
9 2000-12000 Gs
XPGR1-250
Round/Square
250MM 36 CBM/H
1 in Center
11 2000-12000 Gs
XPGR1-300
Round/Square
300MM 40 CBM/H
1 in Center
13 2000-12000 Gs
XPGR1-350
Round/Square
350MM 45 CBM/H
1 in Center
15 2000-12000 Gs
XPGR2-200L
Round/Square
200MM
30 CBM/H
2, left & right
2*5
2000-12000 Gs
XPGR2-200U
Round/Square
200MM
36 CBM/H
2, up & down
2*5
2000-12000 Gs
XPGR2-250L
Round/Square
250MM 36 CBM/H
2, left & right
2*6 2000-12000 Gs
XPGR2-250U
Round/Square
250MM 40 CBM/H
2, up & down
2*6 2000-12000 Gs
XPGR2-300L
Round/Square
300MM 40 CBM/H
2, left & right
2*7 2000-12000 Gs
XPGR2-300U
Round/Square
300MM 45 CBM/H
2, up & down
2*7 2000-12000 Gs
XPGR2-350L
Round/Square
350MM 45 CBM/H
2, left & right
2*8 2000-12000 Gs
XPGR2-350U
Round/Square
350MM 50 CBM/H
2, up & down
2*8 2000-12000 Gs

The ends of magnetic bars


Clamp connection Flang connection




Advantages





Pictures from customers’ using process
